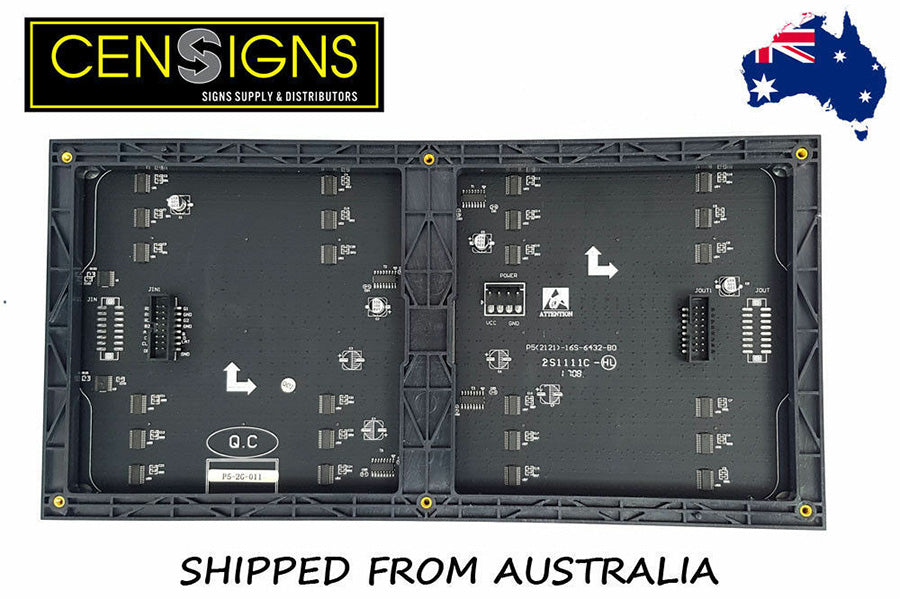

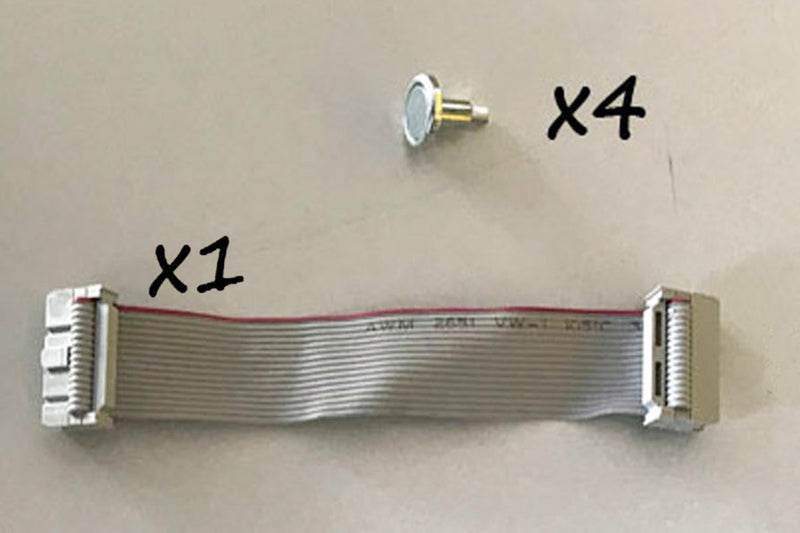

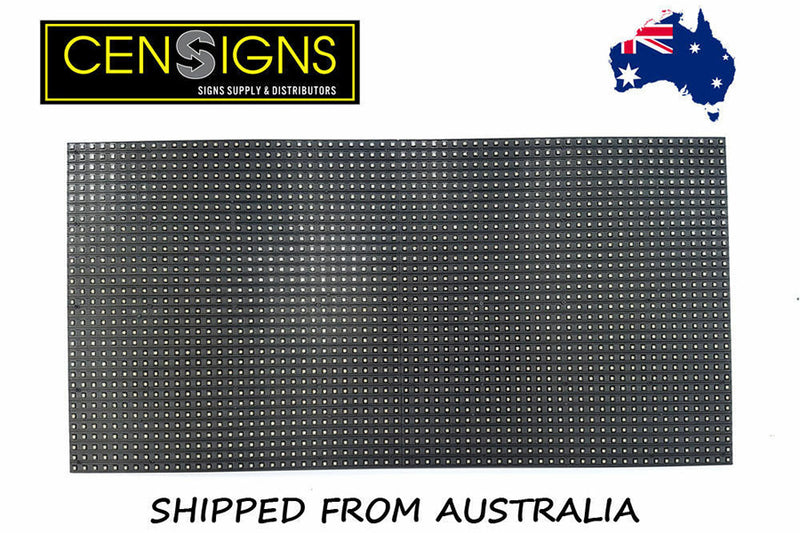

You'd better buy all modules at a time for one led screen, in this way, we can make sure that all of them are of the same batch. For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc. The LED display board can't work alone, it needs additional 5 VDC switching power supply, and control card to work together. Specification: Model P5mm indoor Full color led Module Pixel configuration 3in1 (1R1PG1B) Pixel pitch 5mm Module Size 320X160 mm Model Pixel 64X32Pixels Lattice density 40000 dots/square meter Best viewing distance 3m~20 m Max power consumption 600W/square meter Ave power consumption 350W/square meter Max power per module 30W Warranty 1 year Drive mode( Optional) Constant current 1/16 scan Pixel type Real pixel Refresh frequency >=400HZ Horizontal View Angel > 110 degree Working Environment Temp:-20Celsius degree-+60Celsius degree Working voltage DC 5V Lifetime >=100000 hours Gray scale 12 bit/ 1 color Color display Manual adjust Brightness 1600 cd/square meter Blind spot rate <0.00001 Package Included for 1module: 1) 1x PH5 32*64 RGB Full Color LED Display Module 2) 1X 16 Pin Data cable 3) 1X 5VDC wire 4) 4X Magnet Screw For more product information or any other inquiry call 0403 289 640 or email us at sales.censigns@gmail.com |
